Home /Products/Mud Pump Fluid Ends/National 14P220 Mud Pump Module Assembly

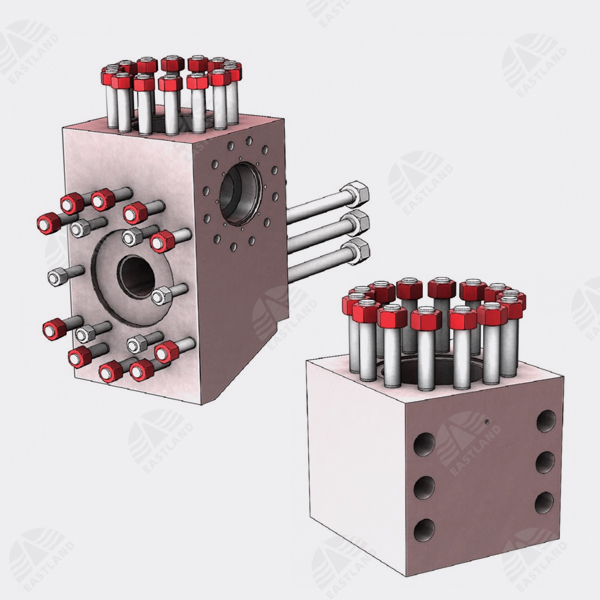

National 14P220 Mud Pump Module Assembly

1 pcs
MOQ
USD 2000-5000
Price
National 14P220 Mud Pump Module Assembly
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

National 14P220 mud pump assembly

,

mud pump fluid end module

,

14P220 pump module with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: 14P220
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description
National 14P220 Mud Pump Fluid Ends

National 14P220 Mud Pump Module Assembly 0

Item P/N Description Qty.
1 80718020 fluid end assembly 3
2 1285240 discharge module studded 3
3 1295241 discharge module only 3
4 2408027 stud,power frame 30
5 6300240 nut,power frame studded 30
6 2408047 stud, liner bushing 18
7 2408048 Stud,suction to discharge module 18
8 6300320 nut,suction to discharge module stud 18
9 2408049 stud,valve cover 42
10 6300240 nut,valve cover stud 42
11 1295243 suction module studded 3
12 1295243 suction module only 3
13 2408049 stud,valve cover 42
14 6300240 nut,valve cover stud 42
15 71142010 Cylindrical Pin 6
16 1295172 cao,valve cover(threaded) 6
17 1295174 ring,threaded 6
18 1295174 retainer,seal 6
19 7601-0040-11 puller,seal retainer 6
20 1540163 seal,valve cover 6
21 1292140 holder,valve guide insert 6
22 1292141 insert,valve guide 6
23 6511416 pin,dowell 6
24 1295257 seal,moduie & wear plate 6
25 1295266 plate,wear 3
26 1295252 connector,discharge 2
27 1295175 ring,discharge connector back up 4
28 700030711 capscrew,discharge connector 16
29 7619050 washer,discharge connector capscrew 16
30 1295253 adapter,discharge connector 2
31 2410031438 seal,discharge connector to discharge adapter 2
32 2410031440 seal,discharge connector to discharge adapter 4
33 1295166 clamp complete, liner 3
34 700049110 capscrew,liner clamp 6
35 6309140 nut,liner clamp 6
36 1295169 pin,liner clamp 6
37 1295168 connector,liner clamp 6
38 7006609 capscrew,discharge spacer flange 24
39 2408014 studmdischarge falnge 24
40 6300180 nut,discharge flange stud 24
41 1540021 seal,suction manifold 3


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
National 14P220 Mud Pump Module Assembly 1 National 14P220 Mud Pump Module Assembly 2 National 14P220 Mud Pump Module Assembly 3 National 14P220 Mud Pump Module Assembly 4
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
National 14P220 Mud Pump Module Assembly 5 National 14P220 Mud Pump Module Assembly 6 National 14P220 Mud Pump Module Assembly 7 National 14P220 Mud Pump Module Assembly 8
