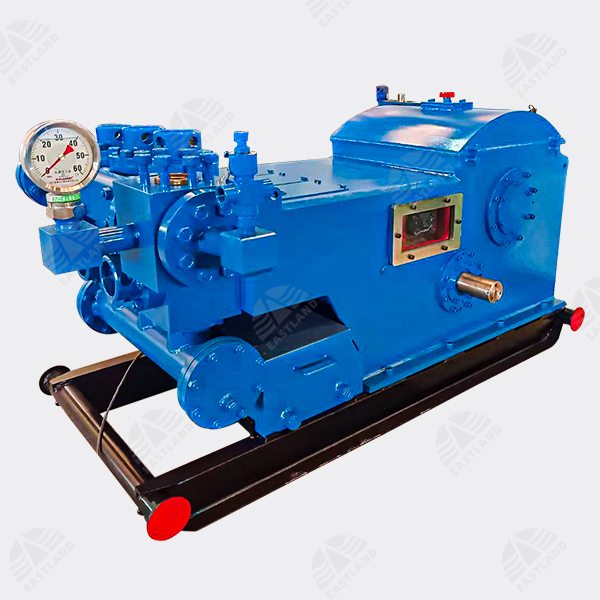

EW446 Triplex Piston Pump For Workover

1 set
MOQ
USD 30000-50000
Price
EW446 Triplex Piston Pump For Workover
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

triplex piston workover pump

,

well service piston pump

,

EW446 workover pump
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: EW446
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Product Description

EW-440/446 Pump can be widely used in all kinds of works in oil field. When the cylinder liner specification is 6"-3 1/2", piston structure is recommended and it is suitable for Oil-Well Repair and shallow-well drilling, etc. When the cylinder liner specification is 3 1/4"-2", axial piston structure is recommended and it is suitable for high-pressure work.

Specifications

Rated Input Power Max. Stroke/minute Stroke Gear Ratio Valve Pot Max. Liner Dia. Max.Operation Pressure
328kw 440hp 320 mm 152.4mm (6") 4.578:1 API 4# 6" 35MPa
Suction Manifold Discharge Manifold Pinion Shaft Key Piston Rod Dimension Weight
6" 150Flange 3" 900 Flange 95.25mm(3.75") 22.174 x15.9mm API SA-2 2479x1219x1103mm 4463kg


Performance


Liner Size(in) 6 5-1/2 5 4-1/2 4 3-1/2
Reated Pressure psi 1027 1222 1479 1710 2169 2816
Pump Speed SPM Input Power HP Displacement, GPM
320 440 661 555 459 397 313 240
270 380 551 463 382 335 264 202
220 320 441 370 306 273 215 165
170 260 330 278 229 211 167 127
120 200 220 185 153 149 118 90
70 200 110 93 76 87 69 52
Volume/Stroke, Gallons 2.203 1.851 1.530 1.239 0.979 0.750
