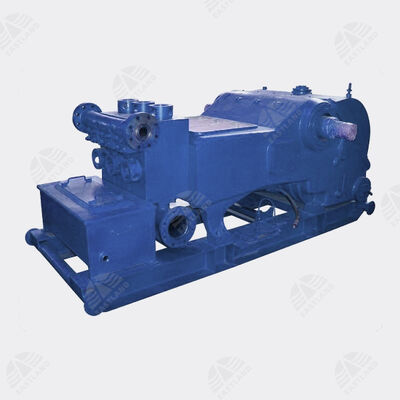

EPAH-350 Triplex Drilling Mud Pump

1 set
MOQ
USD 30000-50000
Price
EPAH-350 Triplex Drilling Mud Pump
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

EPAH-350 triplex drilling mud pump

,

well service mud pump

,

triplex pump with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: EW446
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Product Description
Structural Characters
  • The shell, crankshaft, connecting rods and crosshead are made of nodular cast iron.
  • The crankshaft and gear shaft are supported by aligning roller bearings.
  • The gear pairs are made of casted alloy steel with medium hard tooth face, separate type skewed tooth transmission is adopted with the good features of even force and smooth operation.
  • The built-in oil pump is used to lubricate all alloy parts by force and all accessories of the oil pipe are fastened outside the shell so that it is easy to maintain.
  • The hydraulic cylinder is made of forged alloy steel and its top and side are thread valve covers.
  • The intermediate rod is connected to the piston rod by clamps.
  • At the corners of crankshaft, split-body bearing bush is used to take the place of bearings.
Specification
Rated Input Power 260 kw(350HP)
Max. Stroke Per Minute 175
Stroke Length 8"
Max. Working Pressure 5000 psi
Gear Ratio 4.7:1
Valve API #4
Suction Inlet Flange 6" 150lb flange
Discharge Outlet Flange 2 9/16" 10000 psi flange
Approx Weight Less Skid 9172 lb
Performance Table of PAH350 Triplex Single Acting Pump
Piston
Size		 Displacement Discharge Capacity and Pressure
75 SPM 125 SPM 175 SPM
In Gal/rev Liter/rev GPM LPM PSI Mpa GPM LPM PSI Mpa GPM LPM PSI Mpa
4 1.31 4.96 98 370 5000 34.5 163 617 3212 22.58 228 864 2234 16.13
41/2 1.65 6.25 124 469 3872 27.22 206 781 2538 17.84 289 1094 1680 12.73
5 2.04 7.24 153 579 3136 22.05 255 965 2054 14.44 357 1351 1478 10.31
Input Power HP 321 350 350
KW 236 258 258
Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.
