centrifugal sand pump for drilling

solid control mud pump

well service sand pump

Basic Infomation

Place of Origin: WEIFANG,CHINA

Brand Name: EASTLAND

Certification: API 7K

Payment & Shipping Terms

Packaging Details: Wooden case/iron tray

Payment Terms: T/T

Gallery

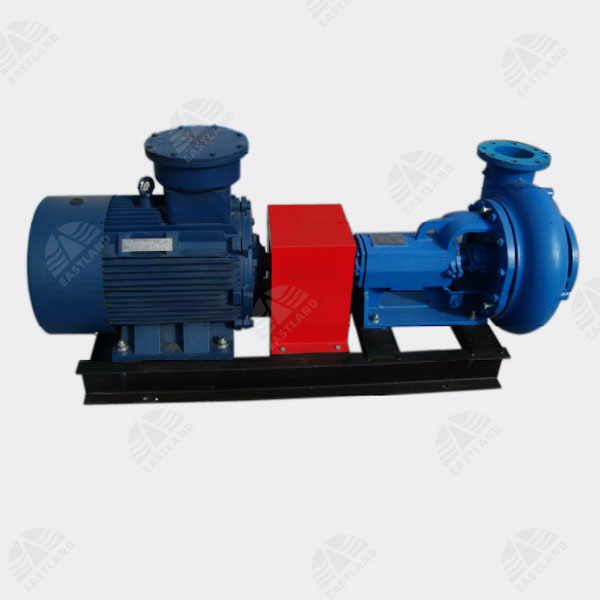

Centrifugal Sand Pump for Drilling Solid Control and Mud Pump

Product Description

Sand pump is used to provide drilling liquid with a certain discharge capacity and pressure to desander, desilter and mud pump. The centrifugal sand pump offered by Eastland through over more than ten years of site applications and improvements is in the domestic advanced level, either in technical performance or in sealing life, and reaches the same level as the similar products abroad.

Mission Magnum Centrifugal pump/sand pump Mission 2500 supreme centrifugal pump/sand pump, Mission sand master centrifugal pump/sand pump

Model	SB10×8×14	SB8×6×14	SB8×6×11	SB6×5×11	SB4×3	SB3×2
Discharge capacity	260～280 m³/h	240～260 m³/h	220～240 m³/h	120～220 m³/h	60 m³/h	50 m³/h
Pump Head	28~33	28～33m	24～28m	24～28m	22～28m	22～28m
Efficiency	65%	65%	65%	65%	65%	65%
Power	75 kW	55/75 kW	37/45 kW	30/37/45 kW	11/15 kW	7.5/11 kW
RPM	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm	1450/1750rpm
Inlet diameter	10″	8″	8″	6″	4″	3″
Outlet diameter	8″	6″	6″	5″	3″	2″
Weight	1150kg	1000/1150kg	920/1050kg	819/887/920kg	438/460kg	358/400kg
Dimension	2020×675×950	1930×650×880 /200×675×950	1848×595×805 /1875×595×805	1770×505×835 /1820×585×805 /1845×585×805	1545×500×710 / 1585×500×710	1435×485×640 /1530×485×710
