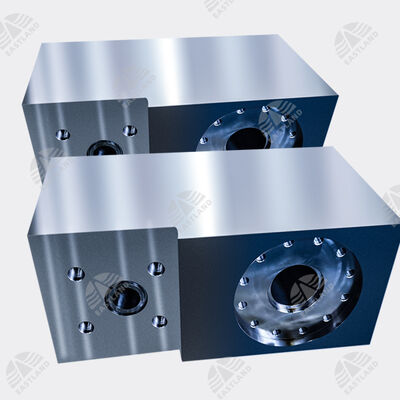

Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module

1 pcs
MOQ
USD 2000-5000
Price
Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Gardner Denver mud pump fluid end

,

PZ10 PZ11 mud pump module

,

Southwest type mud pump parts
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: TPK1300/1600
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description
PZ10 PZ11 7500 psi  Mud Pump Fluid End Module


GARDNER DENVER PZ-10, PZ-11 W/ WEAR PLATE QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # OEM PART # MISSION PART # DESCRIPTION
　 　 FEMPZ1011WPCA ASSY, COMPLETE FLUID END MODULE  (INCLUDES ITEMS 1-23) 3
1 　 FEMPZ1011WP MODULE, STUDDED FLUID END W/ WEAR PLATE GROOVE (INCLUDES ITEMS 1-8) 3
2 201PZL110 PZ1011LCS STUD, FRAME & LINER CLAMP LONG 24
3 205PZL110 PZ1011GPFS STUD, FRAME & LINER CLAMP SHORT 24
4 50B36 6300200 NUT, FRAME & LINER CLAMP STUD 72
5 204PZL110 PZ1011TRS STUD, THREADED RING 72
6 50B34 PZ789TRSN NUT, THREADED RING STUD 72
7 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
8 50B34 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) 12
9 200PZL387 PZ1011FLG RING, VALVE COVER THREADED 6
10 204PZL715 07916780 GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
11 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
12 200PZL147 PZ1011VC COVER, VALVE 6
13 200PZL587 PZ1011CAP CAP, VALVE COVER LOCK 6
14 2011701 PZ789PL PLATE, RETAINER 3
15 200PZL483 PZ1011LVG  GUIDE, VALVE SUCTION 3
16 655EE065 PZLVGABOLT SCREW, VALVE GUIDE TO RETAINER PLATE 6
17 95W2 PZLVGAWASHER WASHER, VALVE GUIDE LOCK  6
18 25AL35 07916747 GASKET, DISCHARGE MANIFOLD 3
19 25BE41 07923283 GASKET, SUCTION MANIFOLD 3
20 200PZL455 PZ1011LC CLAMP, LINER 3
21 　 PZ910WPINTL PLATE, WEAR 3
22 　 20100019 SEAL, WEAR PLATE 3
23 200PZL483A PZ1011LVGA ASSY, LOWER VALVE GUIDE (INCLUDES ITEMS 11, 14-17) 3
24 655EG08N 700044111 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN 24
25 　 7619066 WASHER, SUCTION MANIFOLD CAPSCREW LOCK 24


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 0 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 1 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 2 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 3
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 4 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 5 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 6 Gardner Denver PZ10/PZ11 Southwest Type Mud Pump Fluid End Module 7
