Home /Products/Mud Pump Fluid Ends/Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly

Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly

1 pcs
MOQ
USD 2000-5000
Price
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Lewco WH1300 mud pump assembly

,

triplex mud pump fluid end

,

mud pump module with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: TPK1300/1600
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description
Lewco WH1300 Mud Pump Fluid End

Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 0

ITEM DESCRIPTION QTY.

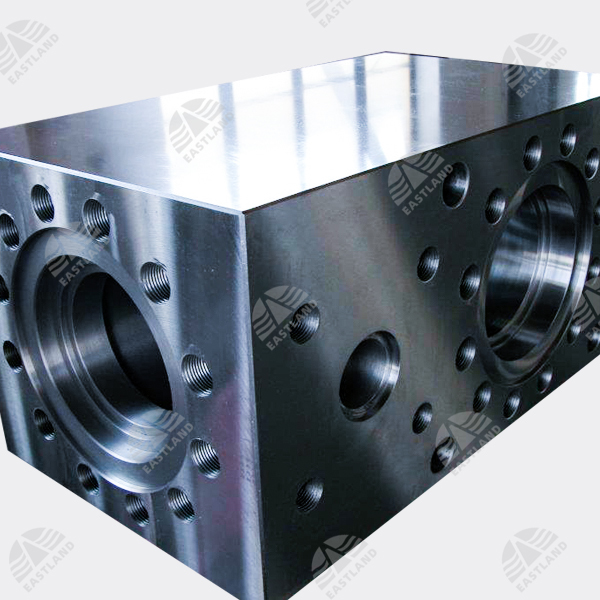

1 machined fluid end 3
2 stud 18
3 nut 30
4 gasket liner 3
5 liner 3
6 liner lock flange 3
7 stud 24
8 nut hx 72
9 piston 3
10 piston rod 3
11 piston rubber 3
12 nut lock nyl ins 1.500 ng8 3
13 suction manifold 1
14 o-ring 3
15 CSCR FH .750 1.750 NC G8 18
16 bushing,valve guide suction 3
17 pin cotter 3
18 lower valve guide 3
19 gasket cylinder head 3
20 cylinder head 3
21 flange cylinder head 3
22 stud 48
23 lock cylinder head 3
24 bushing valve guide discharge 3
25

26 valve cover pot 3
27 gakset valve cover 3
28 flange valve cover 3
29 lock valve cover 3
30 o-ring 3
31 manifold discharge 1
32 stud 1.250 9.000 UN B7 12
33 assy,valve 6


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 1 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 2 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 3 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 4
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 5 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 6 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 7 Lewco WH1300 Triplex Mud Pump Fluid End Module Assembly 8
