Home /Products/Drilling Mud Pump/F500 Triplex Mud Pump For Oilwell Drilling

F500 Triplex Mud Pump For Oilwell Drilling

1 set
MOQ
USD 30000-100000
Price

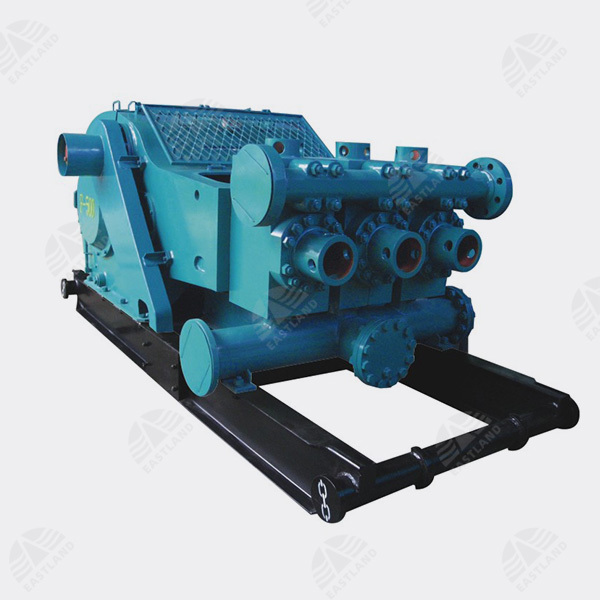

F500 Triplex Mud Pump For Oilwell Drilling
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

triplex mud pump for oilwell

,

F500 drilling mud pump

,

oilwell drilling mud pump
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: F500
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Product Description

Eastland offers mud pumps specifically designed for oil, gas, and geothermal drilling. Mud Pump models include Bomco/Emsco F Series, Gardner Denver PZ Series, PAH series and W440/446 triplex piston pumps. Each mud pump undergoes rigid quality control to ensure exceptional performance and reliability in high-pressure, high-wear drilling conditions.

The F-500 mud pump is designed to meet high-pressure and large-displacement drilling requirements for both onshore and offshore operations which complies with API Spec 7K standards.

F-500 Mud Pump Specification
Reated Power Rated Speed Stroke Max. Liner Dia. Gear Type Valve Pot Gear Ratio Suction Inlet Discharge Outlet Max. Pressure
373kw/500hp 165rpm 190mm/7-1/2" 170mm/6-3/4" Herringbone API5# 4.286:1 203mm/8" 4" Flange 5000psi 27.2MPa 3945psi
Overall Szie 144x106x86(in) Weight 9770kg
Performance
Liner Size(in) 6-3/4 6-1/2 6 5-1/2 5 4
Pump Speed SPM Input Power HP Displacement GPM
Reated Pressure psi 1342 1447 1699 2020 2442 3820
185 500 575 533 454 382 316 202
150 455 523 485 413 347 287 184
140 424 488 452 386 324 268 171
130 394 453 420 358 301 249 159
120 364 418 388 330 278 229 147
110 334 383 355 303 255 210 135
Volume/Stroke,Gallons 3.49 3.23 2.75 2.31 1.91 1.22
