Home /Products/Drilling Mud Pump/F800 Triplex Mud Pump For Oilwell Drilling

F800 Triplex Mud Pump For Oilwell Drilling

1 set
MOQ
USD 30000-100000
Price

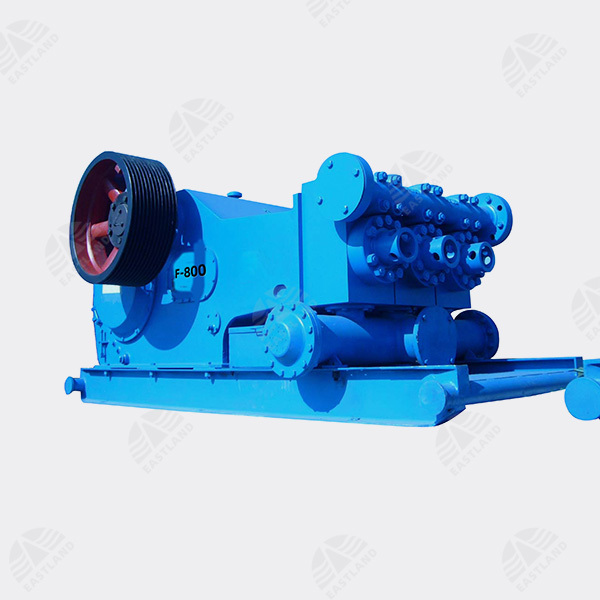

F800 Triplex Mud Pump For Oilwell Drilling
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

F800 triplex mud pump

,

oilwell drilling mud pump

,

triplex drilling pump with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: F800
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Product Description

Eastland offers mud pumps specifically designed for oil, gas, and geothermal drilling. Mud Pump models include Bomco/Emsco F Series, Gardner Denver PZ Series, PAH series and W440/446 triplex piston pumps. Each mud pump undergoes rigid quality control to ensure exceptional performance and reliability in high-pressure, high-wear drilling conditions.

The F-800 mud pump is robust and compact, designed to meet high-pressure and large-displacement drilling requirements for both onshore and offshore operations which complies with API Spec 7K standards.

F-800 Mud Pump Specification
Rated Power Rated Speed Stroke Max. Liner Dia. Gear Type Valve Pot
596kw/800hp 150rpm 228mm/6/9" 170mm/6-3/4" Herringbone API 6#
Gear Ratio Suction Inlet Discharge Outlet Max. Pressure Overall Size(in) Weight(kg)
4.185:1 254mm/10" 5" Flange 5000psi 34.5MPa 5000psi 156x79x66 14500
Performance
Liner Size(in) 6-3/4 6-1/2 6 5-1/2 5 4
Pump Speed SPM Input Power HP Displacement GPM
Reated Pressure psi 1969 2122 2490 2962 3588 5000
150 800 627 582 496 417 344 220
140 747 586 543 463 389 321 206
130 694 544 504 430 361 298 191
120 640 502 465 397 333 275 176
110 587 460 427 364 305 252 162
100 533 418 388 330 278 229 147
Volume/Stroke,Gallons 4.18 3.88 3.30 2.78 2.29 1.47
Tag:

oilwell drilling mud pump

F1600 Triplex mud pump for drilling

oil and gas drilling mud pump
