Home /Products/Drilling Mud Pump/F1300 Triplex Mud Pump For Oilwell Drilling

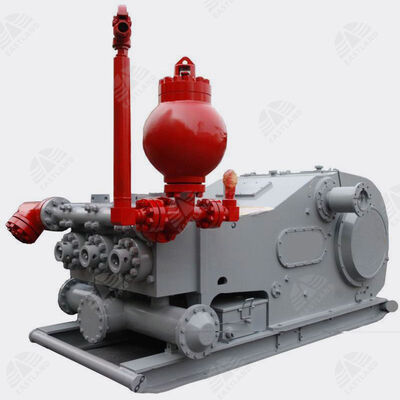

F1300 Triplex Mud Pump For Oilwell Drilling

1 set
MOQ
USD 30000-100000
Price
F1300 Triplex Mud Pump For Oilwell Drilling
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

triplex mud pump for oilwell drilling

,

F1300 drilling mud pump

,

oilwell drilling mud pump with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: F1300
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Product Description

Eastland offers mud pumps specifically designed for oil, gas, and geothermal drilling. Mud Pump models include Bomco/Emsco F Series, Gardner Denver PZ Series, PAH series and W440/446 triplex piston pumps. Each mud pump undergoes rigid quality control to ensure exceptional performance and reliability in high-pressure, high-wear drilling conditions.

The F-1300 mud pump is designed to meet high-pressure and large-displacement drilling requirements for both onshore and offshore operations which complies with API Spec 7K standards.

F-1300 Mud Pump Specification
Rated Power Rated Speed Stroke Max. Liner Dia. Gear Type Valve Pot
969kw/1300hp 120rpm 305mm/12" 180mm/7" Herringbone API 7#
Gear Ratio Suction Inlet Discharge Outlet Max. Pressure Overall Size(in) Weight(kg)
4.206:1 305mm/12" 5" Flange 5000psi 34.5MPa 5000psi 174x121x78 24572
Performance
Liner Size(in) 7 6-3/4 6-1/2 6 5-1/2 5
Reated Pressure psi 2786 2998 3232 3792 4516 5000
Pump Speed SPM Input Power HP Displacement GPM
120 1300 720 669 621 529 444 367
110 1192 660 613 569 485 407 337
100 1083 600 558 517 441 370 306
90 975 540 502 465 397 333 275
80 867 480 446 414 353 296 245
70 758 420 390 362 308 259 214
Volume/Stroke,Gallons 6.00 5.58 5.17 4.41 3.70 3.06
Tag:

oilwell drilling mud pump

F1600 Triplex mud pump for drilling

oil and gas drilling mud pump
