F1000 Triplex Mud Pump For Oilwell Drilling

1 set
MOQ
USD 30000-100000
Price
F1000 Triplex Mud Pump For Oilwell Drilling
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

F1000 Triplex mud pump for oil drilling

,

heavy-duty drilling mud pump

,

oilwell drilling pump with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: F1000
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Product Description

Eastland offers mud pumps specifically designed for oil, gas, and geothermal drilling. Mud Pump models include Bomco/Emsco F Series, Gardner Denver PZ Series, PAH series and W440/446 triplex piston pumps. Each mud pump undergoes rigid quality control to ensure exceptional performance and reliability in high-pressure, high-wear drilling conditions.

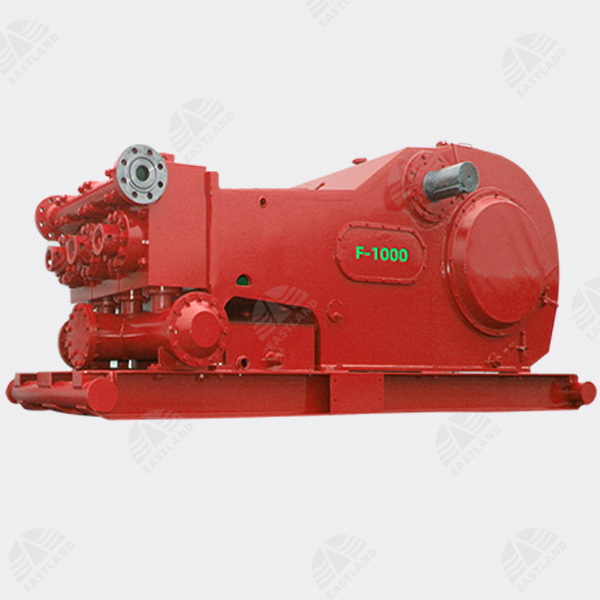

The F-1000 mud pump is designed to meet high-pressure and large-displacement drilling requirements for both onshore and offshore operations which complies with API Spec 7K standards.

F-1000 Mud Pump Specification
Rated Power Rated Speed Stroke Max. Liner Dia. Gear Type Valve Pot
735kw/1000hp 140rpm 254mm/10" 170mm/6-3/4" Herringbone API 6#
Gear Ratio Suction Inlet Discharge Outlet Max. Pressure Overall Size(in) Weight(kg)
4.207:1 305mm/12" 5" Flange 5000psi 34.5MPa 5000psi 163x89x70 18790
Performance
Liner Size(in) 6-3/4 6-1/2 6 5-1/2 5 4
Pump Speed SPM Input Power HP Displacement GPM
Reated Pressure psi 2370 2558 3000 3572 4322 5000
140 1000 651 603 514 432 357 289
140 928 604 560 477 401 331 269
120 857 558 517 441 370 306 248
110 785 511 474 404 339 280 227
100 714 465 431 367 309 255 207
90 642 418 388 330 278 229 186
Volume/Stroke,Gallons 4.65 4.31 3.67 3.09 2.55 2.07
