F1600 Triplex Mud Pump For Oil & Gas Drilling

1 set
MOQ
USD 30000-100000
Price

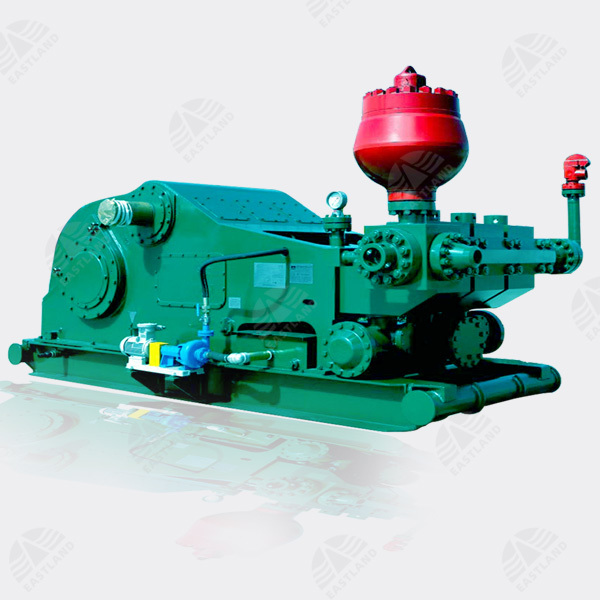

F1600 Triplex Mud Pump For Oil & Gas Drilling
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

F1600 Triplex mud pump for drilling

,

oil and gas drilling mud pump

,

triplex mud pump with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: F1600
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Product Description

Eastland offers mud pumps specifically designed for oil, gas, and geothermal drilling. Mud Pump models include Bomco/Emsco F Series, Gardner Denver PZ Series, PAH series and W440/446 triplex piston pumps. Each mud pump undergoes rigid quality control to ensure exceptional performance and reliability in high-pressure, high-wear drilling conditions.

The F-1600 mud pump is designed to meet high-pressure and large-displacement drilling requirements for both onshore and offshore operations which complies with API Spec 7K standards.

F-1600 Mud Pump Specification
Rated Power Rated Speed Stroke Max. Liner Dia. Gear Type Valve Pot
1193kw/1600hp 120rpm 305mm/12" 180mm/7" Herringbone API 7#
Gear Ratio Suction Inlet Discharge Outlet Max. Pressure Overall Size(in) Weight(kg)
4.206:1 305mm/12" 5" Flange 5000psi 34.5MPa 5000psi 181x129x106 24791
Performance
Liner Size(in) 7 6-3/4 6-1/2 6 5-1/2 5
Reated Pressure psi 2786 2998 3232 3792 4516 5000
Pump Speed SPM Input Power HP Displacement GPM
120 1600 720 669 621 529 444 367
110 1467 660 613 569 485 407 337
100 1334 600 558 517 441 370 306
90 1200 540 502 465 397 333 275
80 1067 480 446 414 353 296 245
70933
420 390 362 308 259 214
Volume/Stroke,Gallons 6.00 5.58 5.17 4.41 3.70 3.06
