Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi

1 pcs
MOQ
USD 2000-5000
Price
Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Oilwell mud pump fluid end module

,

L-shaped mud pump fluid end

,

7500psi mud pump fluid end
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: 14P220
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description

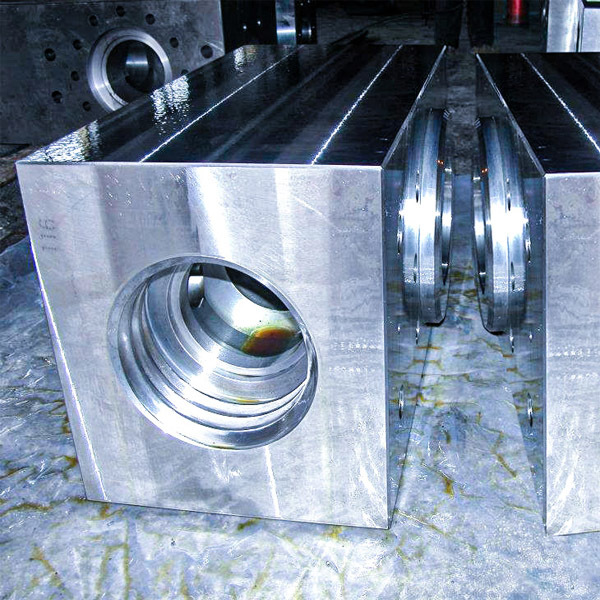

Oilwell HD1700PT Mud Pump Fluid End

Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 0

MISSION "L" FOR OILWELL A & HD STYLE PUMPS (7500 PSI  WORKING PRESSURE) QTY PER PUMP
FLUID END MODULE & ACCESSORIES (INCLUDES DISCHARGE MANIFOLD)
ITEM # DESCRIPTION
　 ASSEMBLY, FLUID END COMPLETE (INCLUDES ITEMS 1-18, 23-24, 27-35) 1 PUMP 1
　 ASSEMBLY, MODULE COMPLETE (INCLUDES ITEMS 1-15, 17-18, 23-24, 27-35) 1 CYLINDER 3
1 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-11) 3
2 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2, 7-8) 3
3 STUD, DISCHARGE TO SUCTION MODULE 24
4 NUT, DISCHARGE TO SUCTION MODULE STUD 24
5 STUD, DISCHARGE MANIFOLD 12
6 NUT, DISCHARGE MANIFOLD STUD 12
7 STUD, THREADED RING 72
8 NUT, THREADED RING STUD 72
9 STUD, POWER FRAME 12
10 NUT, POWER FRAME STUD 12
11 CAPSCREW, SOCKET HEAD FOR LINER RETAINER PLATE 24
12 PIN, DOWELL  6
13 THREADED RING 6
14 THREADED CAP  6
15 VALVE COVER 6
16 MANIFOLD, DISCHARGE (7500 PSI WORKING PRESSURE) 1
17 BUSHING, VALVE GUIDE 6
18 GUIDE, VALVE 6
19 VALVE COMPLETE (COMPLETE WITH INSERT #21) 6
20 SPRING, VALVE 6
21 INSERT, VALVE (URETHANE) 6
22 SEAT, VALVE 6
23 CAPSCREW, VALVE GUIDE 12
24 NUT, LINER LOCK 3
25 LINER, CERAMIC 3
26 PISTON, GREEN DUO 3
27 PLATE, WEAR 3
28 PLATE, LINER RETAINER 3
29 SEAL, DISCHARGE TO SUCTION MODULE 3
30 SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 6
31 SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) 3
32 CAPSCREW, SUCTION MANIFOLD  24
33 SEAL, DISCHARGE MANIFOLD TO MODULE 3
34 GASKET, SUCTION MANIFOLD TO SUCTION MODULE 3
35 SETSCREW, LINER LOCK NUT 3

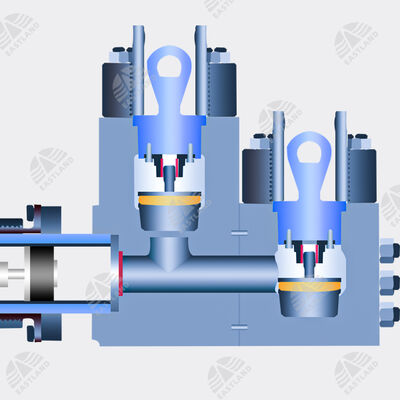

I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 1 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 2 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 3 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 4
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 5 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 6 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 7 Oilwell HD1700PT Mud Pump Fluid End Module L shaped 7500psi 8
