National Oilwell 14P220 Mud Pump FLuid End Module Assembly

1 pcs
MOQ
USD 2000-5000
Price
National Oilwell 14P220 Mud Pump FLuid End Module Assembly
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

National Oilwell mud pump fluid end

,

14P220 mud pump module assembly

,

mud pump fluid end module
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: 14P220
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description

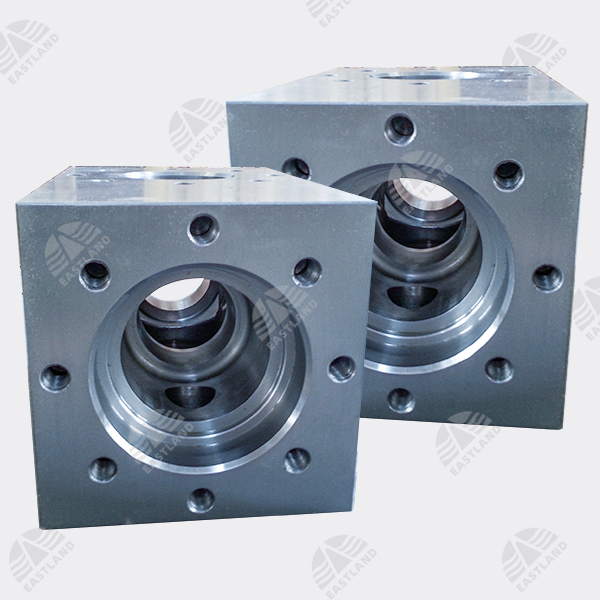

National Oilwell 14P220 Mud Pump Fluid End

National Oilwell 14P220 Mud Pump FLuid End Module Assembly 0

7500 PSI "L" MODULE FOR NATIONAL 14-P-220 (Mission Style) QTY PER PUMP
FLUID END MODULE & ACCESSORIES
ITEM # DESCRIPTION
　 ASSEMBLY, FLUID END COMPLETE FOR 14P220 (7500 PSI) 1
1 MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-10) 3
2 MODULE, SUCTION STUDDED (INCLUDES ITEMS 2-4) 3
3 STUD, THREADED RING 84
4 NUT, THREADED RING STUD 84
5 STUD, POWER FRAME 30
6 NUT, POWER FRAME STUD 30
7 STUD, LINER BUSHING 18
8 NUT, LINER BUSHING STUD 18
9 STUD, DISCHARGE TO SUCTION MODULE 24
10 NUT, DISCHARGE TO SUCTION STUD 24
11 STUD, DISCHARGE MANIFOLD 12
12 NUT, DISCHARGE MANIFOLD STUD 12
13 DISCHARGE MANIFOLD 1
14 SUCTION MANIFOLD 1
15 CAPSCREW, SUCTION MANIFOLD 24
16 SEAL, SUCTION MANIFOLD 3
17 VALVE COVER 6
18 THREADED RING 6
19 THREADED CAP  6
20 WEAR PLATE, OUTER 3
21 WEAR PLATE, GREASE 3
22 SHIM PACK  3
23 SCREW, HEX HD CAP 5/8 X 1-1/2 18
24 VALVE, WHITE LIGHTNING (SERIES 8) 6
25 SEAT, HD8-S07 6
26 　 　
27 SPRING, 5710-101   6
28 GUIDE, VALVE (DISCHARGE) 3
29 GUIDE, VALVE (SUCTION) 3
30 INSERT, VALVE GUIDE 6
31 SCREW, VALVE GUIDE 24
32 PIN, DOWELL STD HDN & GRD 7/8 3
33 PLATE, WEAR 3
34 GASKET, VALVE COVER - L STYLE - RUBBER  6
35 SEAL, SUCTION MODULE & WEAR PLATE 6
36 SEAL, DISCHARGE MANIFOLD 3

I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
National Oilwell 14P220 Mud Pump FLuid End Module Assembly 1 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 2 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 3 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 4
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
National Oilwell 14P220 Mud Pump FLuid End Module Assembly 5 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 6 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 7 National Oilwell 14P220 Mud Pump FLuid End Module Assembly 8
