Home /Products/Mud Pump Fluid Ends/Lewco W2215 Triplex Mud Pump Fluid End Module Assembly

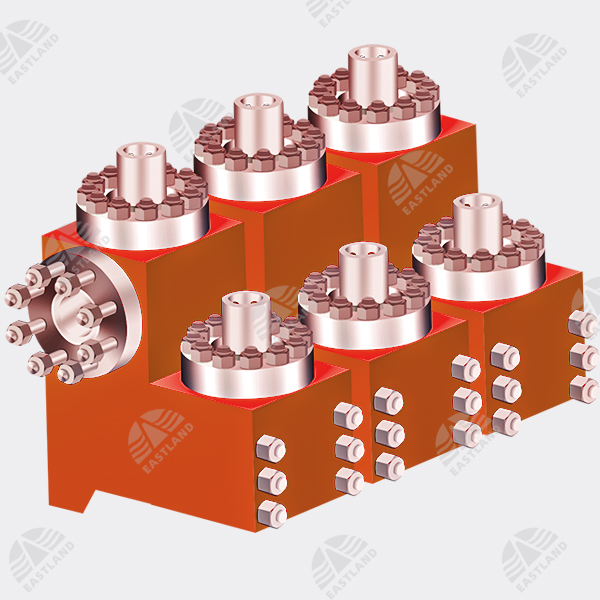

Lewco W2215 Triplex Mud Pump Fluid End Module Assembly

1 pcs
MOQ
USD 2000-5000
Price
Lewco W2215 Triplex Mud Pump Fluid End Module Assembly
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Lewco W2215 triplex mud pump

,

mud pump fluid end assembly

,

triplex pump module with warranty
Basic Infomation
Place of Origin: WEIFANG,CHINA
Brand Name: EASTLAND
Certification: API 7K
Model Number: W2215
Document: Mud Pump Fluid End Expendab...ey.pdf
Payment & Shipping Terms
Packaging Details: iron tray
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Product Description
Lewco WH2215 Mud Pump Fluid End

Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 0

ITEM DESCRIPTION QTY.
1 discharge module 3
2 suction module 3
3 discharge manifold 1
4 suction manifold 1
5 o ring, discharge manifold to fluid end 3
6 o-ring suction manifold to fluid end 3
7 bolt  24
8 gasket,valve cover 6
9 valve cover 6
10 flange,valve cover 6
11 lock,valve cover 6
12 valve guide 6
13 bushing valve guide 6
14 CSCR flat SK .500 UNC 1.00 12
15 gasket,module & wear plate 6
16 wear plate 3
17 liner lock flange 3
18 liner lock ring 3
19 dowel pin 6
20 nut lock nylon 3
21 piston rod 3
22 stud 72
23 stud 30
24 stud 18
25 stud 18
26 stud 18
27 nut 102
28 nut 18
29

30 nut coupling 18
31 nut hvy hx 18
32 valve spring 6
33 valve insert
34 vakve seat 6
35 valve 6
36 liner gasket 3
37 liner 3
38 piston 3
39 piston rubber 3
40 baffle structure 3
41 bolt 9
42 nut 9


I Shaped Module L Shaped Module One Bonded Module Two-pieces Module
Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 1 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 2 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 3 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 4
F Series Mud Pump Module PZ Series Mud Pump Module NOV P Series Module Southwest Type Module
Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 5 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 6 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 7 Lewco W2215 Triplex Mud Pump Fluid End Module Assembly 8
Tag:

Triplex mud pump fluid end

mud pump fluid end accessories

Oilwell A1700PT mud pump fluid end
